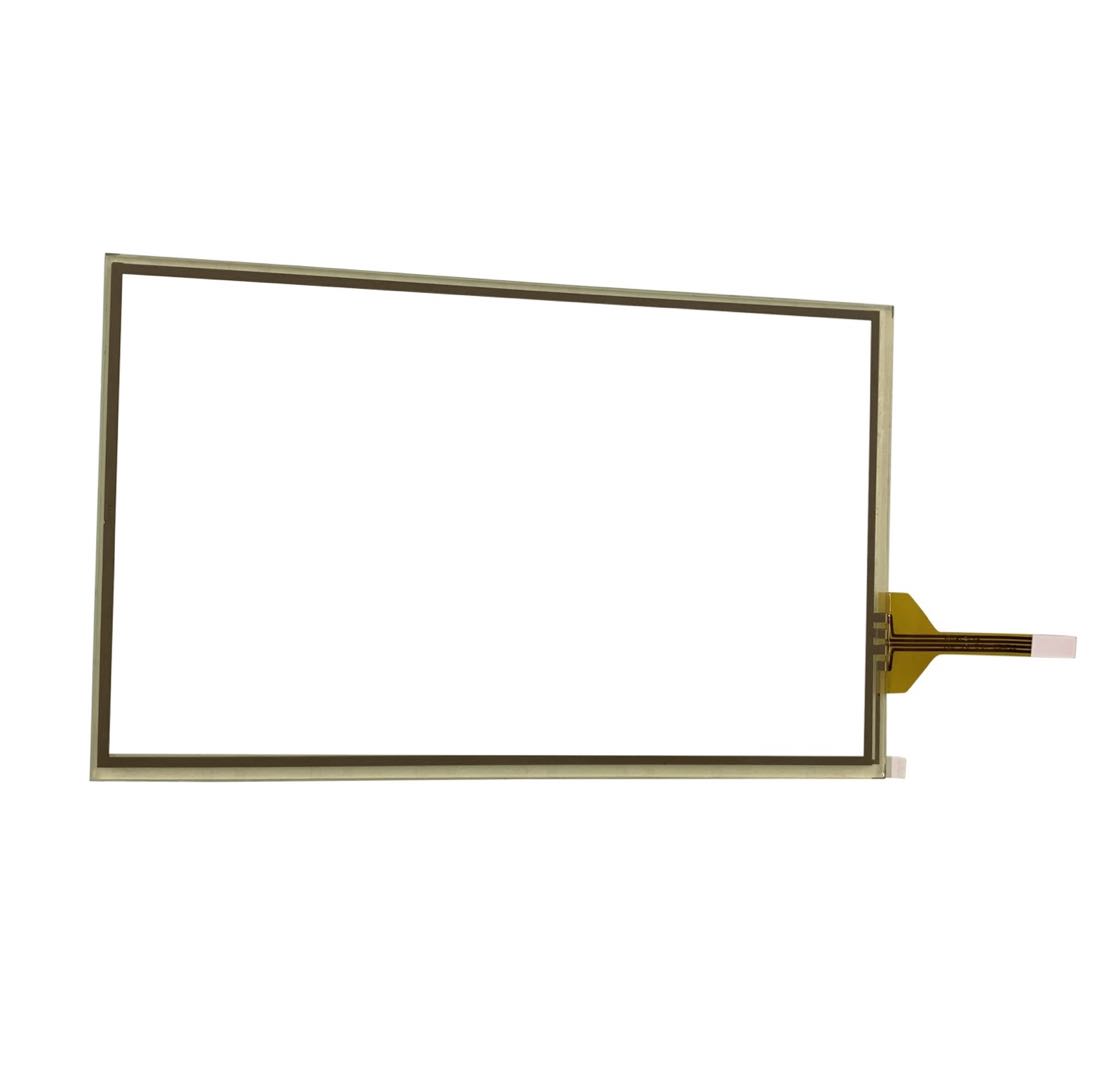

  • The name: 4-Wire Resistive Touch Panel
  • Release time: 2020-12-30
  • Views : 18



SizeFrom 2.6”to 15.6”

ApplicationPOSMedical DeviceFinanceIndustrialKiosk

Transmittance:>80%

Linearity:<1.5%

504H Environment Test

Surface Hardness≥3H

Narrow Boarder Design

Sunlight Readability Available

Operating Temperature: -30℃ to 70℃

Storage Temperature: -40℃ to 80℃

Warranty1 Year



General Specification

Type

Four -Wire Resistive Touch Panel

Input Mode

Stylus or Finger

Cable

Flexible Printed Circuit

Environmental Characteristics

Operation Temperature

-30℃ to 70℃

Storage Temperature

-40℃ to 80℃

Operation Humidity

(Non Condensing)

20%RH - 90%RH

Storage Humidity

(Non Condensing)

10%RH - 90%RH

Electrical Characteristics

Loop Resistance

X:100~500Ω, Y:300~1000Ω

Linearity

X1.5%, Y1.5% (See Figure 10-2)

Chattering

≤10ms

Insulation

≥20MΩ/25V(DC)

Endurance

No damage at DC50V/60sec.

Optical Characteristics

Transparency



78%

(measured by BYK-Gardner Haze Meter at 550nm)

Haze

Anti-glare Finish: 8%±2%

Reliability

High Temperature/Humidity

60°C/90%RH, 120 hrs, allow panel stays in normal environment for 24 hrs

High Temperature

80°C /120 hrs allow panel stays in normal environment for 24 hrs

Low Temperature



-40°C /120 hrs allow panel stays in normal environment for 24 hrs

Thermal Cycle



-30°C ~70℃

 [30 min./cycle] *20cycles

allow panel to stay in normal environment for 24 hrs

Salt Fog Test



Salt solution ph: 6.5 ~ 7.2, spray quantity: 1 ~ 2 ml / 80 cm2 / h, time 72 h, temperature 40 ℃

Durability

Knock Test

1,000,000 Times

Line Test

100,000 Times
